Overview
Lubrication systems are essential for ensuring stable and long-term operation of production equipment across all industries. Our K-series forced circulation lubrication system is a standardized unit designed to meet various applications and scales, enabling quick manufacturing at a low cost.
Specifications
| Model | Method | Oil reservior | Oil Pump | Motor | Filter | Oil cooler | Cooling water | Oil viscocity | Heating device |
|---|---|---|---|---|---|---|---|---|---|

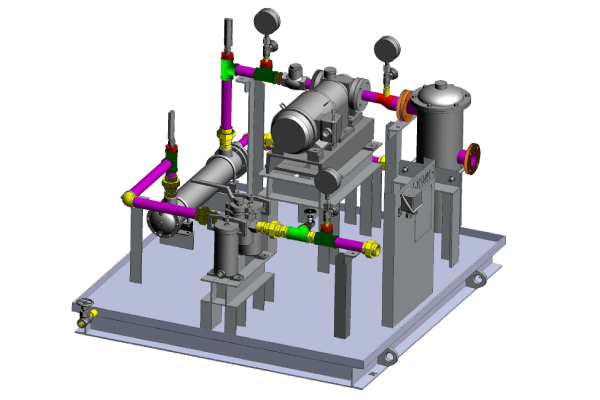

| K1 | Base Plate Unit | ― | 1 unit/Discharge pressure0.55㎫ | 1 unit/Totally enclosed external fan type E-class three-phase 50Hz 200V/400V 60Hz 200/220V, 400/440V |
1 unit / Filtration accuracy：equivalent to 150 mesh | 1 unit/Cooling capacity 48℃→40℃ |
MAX.32℃ 2.5㎫ Industrial water |
ISO VG320 | ― |
| K2 | Unit Type | 1 unit/10 times the pump discharge per minute | ― | ― | ISO VG320、220、68 | Electric heater Heating capacity 5°C/hr(when oil is stationary) |
|||

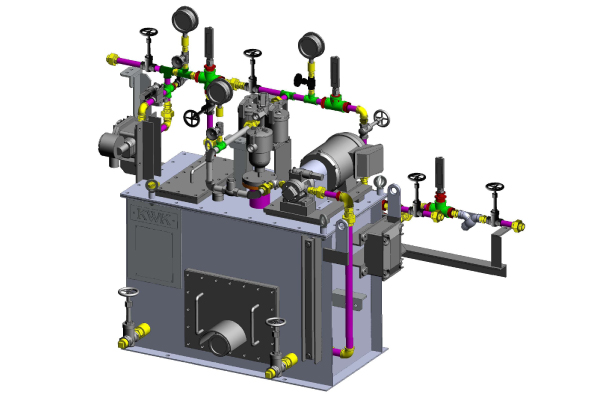

| K3 | Unit Type | 1 unit/10 times or 15 times the pump discharge per minute | 1 unit/Cooling capacity 48℃→40℃ |
MAX.32℃ 2.5㎫ Industrial water |
|||||

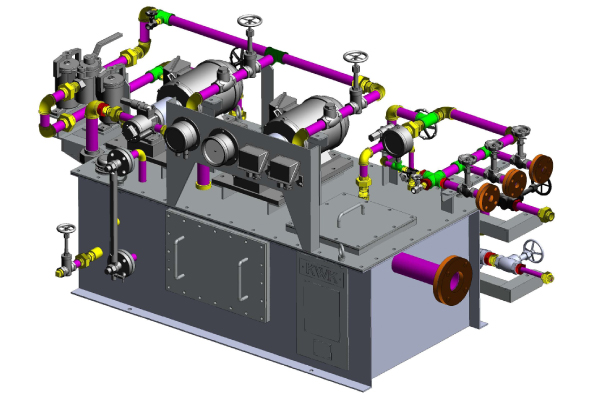

| K4A | Unit Type | 1 unit/10 times, 15 times, or 30 times the pump discharge per minute | 2 units/Discharge pressure0.55㎫ | 2 units/Totally enclosed external fan type E-class three-phase50㎐ 200V/400V 60㎐ 200/220V 400/440V |
|||||

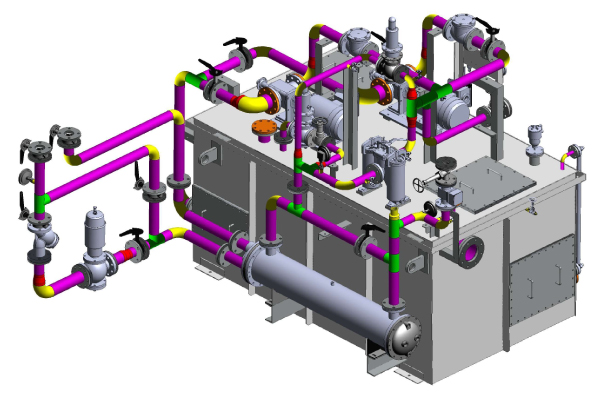

| K4B | Unit Type | ||||||||
| K4C | Cellar Type | Steam heater Heating capacity 5°C/hr(when oil is stationary) Pressure 2 MPa saturated steam |
|||||||
| K5 | Cellar Type | Please inquire separately. | |||||||
| K6 | Cellar Type | ||||||||

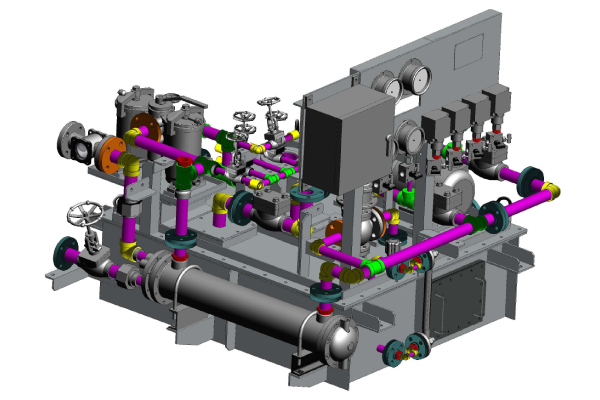

| K7 | Unit Type (For blower) |
1 unit/10 times the pump discharge per minute | 2台/Discharge pressure0.55㎫ | 2 units / Totally enclosed external fan type E-class three-phase 50Hz 200V/400V 60Hz 200/220V, 400/440V |
1 unit/Filtration accuracy：equivalent to 150 mesh | 1 unit/Cooling 1 unit/Cooling capacity 48℃→40℃ | MAX.32℃ 2.5㎫ Industrial water |
ISO VG68 | ― |
PDF files of catalogues are available.
